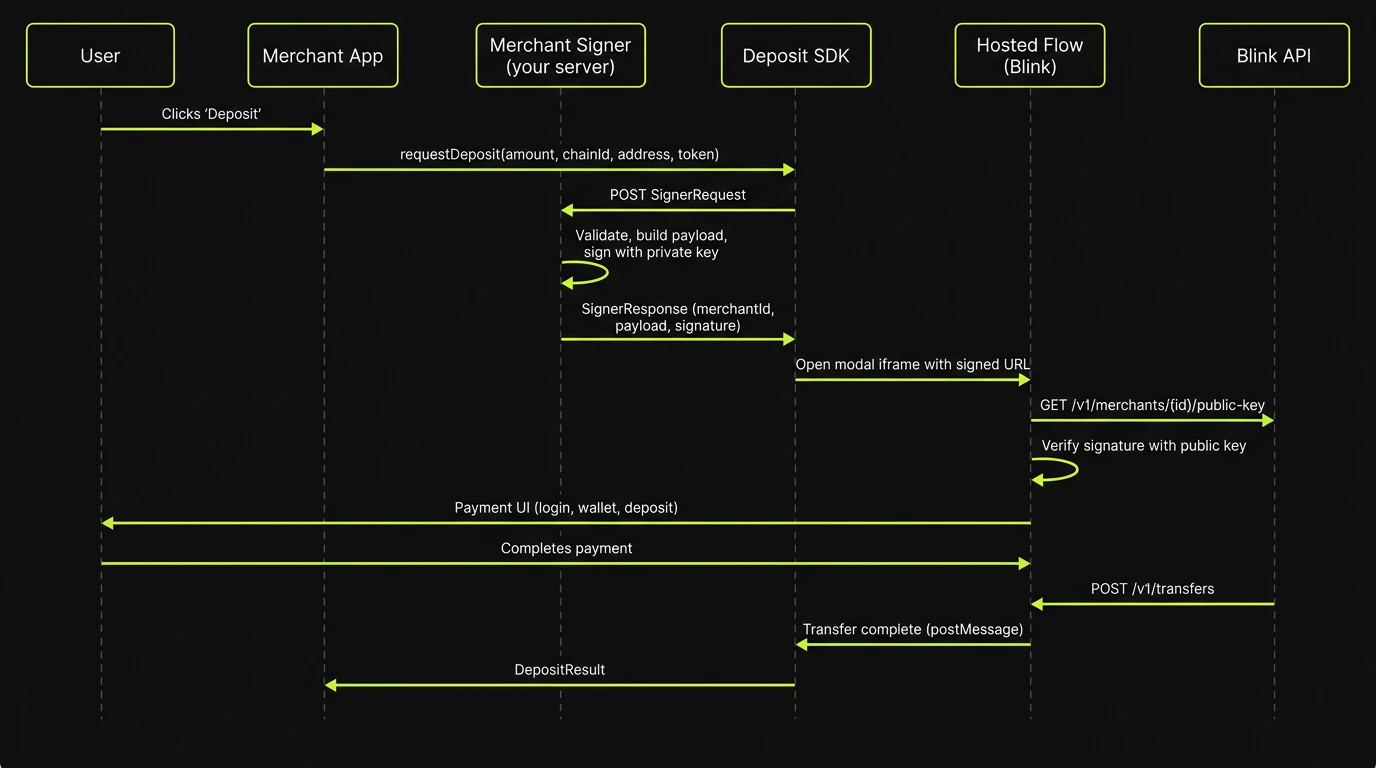

Deposit flow
The flow above shows the web integration. For mobile apps, the Mobile Deposit SDK (
@swype-org/deposit-mobile) follows the same signed-link model but opens the hosted flow in an in-app browser instead of an iframe, and receives the result via a deep link callback instead of postMessage. See Integrate the Mobile Deposit SDK for details.Components
Your side
Blink side
Security model
- Private key stays on your server. The Deposit SDK never sees your private key. It only receives the signed payload from your signer endpoint.
- Blink verifies every payment. The hosted flow fetches your registered public key and verifies the ECDSA signature before showing any payment UI. A forged or tampered payload is rejected.
- Idempotency keys prevent duplicates. Each signer response includes a unique UUID. If the same idempotency key is submitted twice, the second transfer is rejected.
- Short-lived links. The signed payload includes a
signatureTimestamp. Blink enforces a maximum signature age of 15 minutes server-side. Expired links are rejected automatically.
Iframe lifecycle
On desktop viewports (wider than 480px), the transfer renders as a centered modal (460px wide, 680px tall) with a backdrop blur overlay. On mobile viewports (480px or narrower), it renders full-screen for an app-like experience. The iframe has WebAuthn permissions (publickey-credentials-get and publickey-credentials-create) so passkey ceremonies work cross-origin. The user only leaves your page to create a passkey when the browser blocks cross-origin iFrame passkey creation and to connect their mobile wallet.
When the user completes payment, the hosted flow sends a blink:transfer-complete postMessage. The SDK validates the origin, acknowledges receipt, closes the iframe, and resolves the requestDeposit() promise.
